When to Use Butterfly Valve: Key Applications

A butterfly valve is ideal for low to medium-pressure applications with variable flow requirements. It is commonly used in large-diameter piping systems where a compact, lightweight design is essential. Butterfly valves are frequently employed in water distribution, chemical processing, low-pressure applications, and more. They are suitable for throttling and fully open or closed applications, providing efficient flow control and regulation across multiple settings.

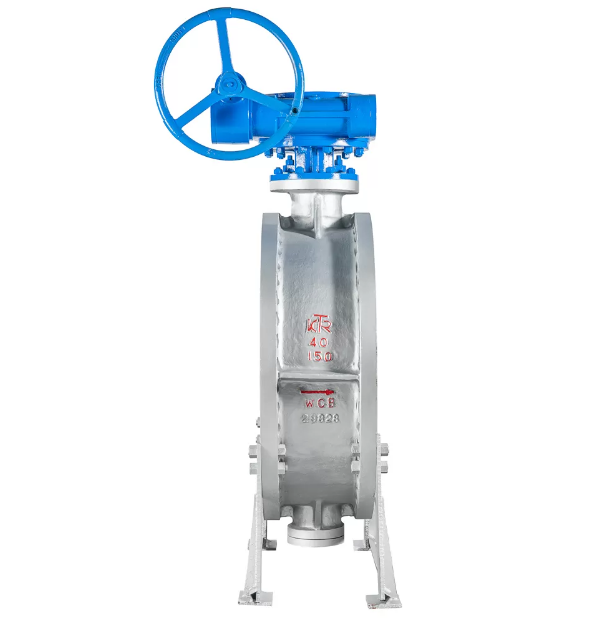

The valve operates through a rotating disc connected to a central stem. When closed, the disc is positioned perpendicular to the flow, effectively blocking it. Rotating the stem 90 degrees aligns the disc parallel to the flow, allowing fluid to pass through. Additionally, the valve can be partially opened to modulate flow. An o-ring seal prevents leakage along the stem, ensuring reliable performance. For a detailed overview of butterfly valve designs and types, read our comprehensive guide.

When to Use a Butterfly Valve

A butterfly valve is a versatile and cost-effective choice for various applications due to its compact design, efficient operation, and reliable performance. Here are key scenarios where butterfly valves excel:

- Quick Shutoff: Butterfly valves enable rapid opening and closing, making them ideal for emergency shutdowns and fire suppression systems where fast isolation is critical.

- Space-Saving Design: With a streamlined, compact structure, butterfly valves require significantly less installation space than gate or globe valves, making them suitable for tight or congested piping systems. Their cost-effectiveness further enhances their appeal.

- Large Pipe Applications: When fully opened, butterfly valves offer low flow resistance and precise control, making them a preferred choice for regulating fluid flow in large-diameter piping systems.

- Handling Coarse Media: Depending on the seal strength, butterfly valves can manage media containing suspended solids, powders, and granules. They are also effective in transporting mud or slurries, minimizing liquid accumulation at the pipe inlet.

- Low Torque Requirements: Thanks to their quarter-turn operation, butterfly valves require less torque, allowing the use of smaller, more cost-effective actuators compared to gate valves.

- Flow Regulation: While not as precise as globe valves, butterfly valves provide effective throttling and flow control, balancing flow efficiency with minimal pressure drop.

- Robust Mechanical Properties: Featuring a through-rod design, the valve stem undergoes tempering for enhanced mechanical strength, corrosion resistance, and scratch resistance. Its non-lifting rotation minimizes packing wear, ensuring a secure and durable seal.

Common Applications of Butterfly Valves

Butterfly valves are widely used across various industries for flow control, isolation, and regulation. Some key applications include:

- Chemical Industry: Used for on/off and modulating control of chemicals and liquids in processing and transportation.

- Oil and Gas Industry: Employed for flow isolation and regulation in pipelines and storage vessels.

- Water Treatment: Essential for managing the flow of water and treatment chemicals, particularly in seawater desalination and raw water processing.

- HVAC Systems: Regulate air and fluid flow in large duct systems, chilled water networks, and heating systems, ensuring efficient temperature control.

- Food and Beverage Processing: Control fluid movement during production while maintaining sanitary conditions.

- Potable Water Systems: Used in water distribution networks, including pumping stations, transmission lines, and drinking water systems, serving as effective flow isolation devices.

Disadvantages of Butterfly Valves

While butterfly valves offer versatility and cost-effectiveness, they also have some limitations:

- Unsuitability for High-Pressure and High-Temperature Systems: Standard butterfly valves are not ideal for extreme pressure and temperature conditions, as the disc and seal design may be prone to leakage.

  - Exception: High-performance butterfly valves are made with more durable materials, offering higher pressure and temperature resistance, better corrosion protection, and improved sealing.

- Limited Precision in Flow Control: Although butterfly valves can regulate flow, they are not suitable for applications requiring precise adjustments. They are best for general flow control where minor leakage is acceptable.

  - Triple Offset Butterfly Valves: These provide better sealing, making them suitable for applications where leakage prevention is critical. However, their flow control precision is still lower than that of globe valves, which are designed for fine regulation.

- Flow Obstruction: Since the disc remains in the flow path even when fully open, it creates a slight pressure drop. This makes butterfly valves unsuitable for applications where minimal flow resistance is essential.

- Not Piggable: Butterfly valves cannot be used in systems that require pigging (pipeline cleaning using a device that travels through the pipe), as the disc obstructs the passage.

Butterfly Valves vs. Ball, Gate, and Globe Valves

Butterfly valves are ideal for quick on/off control in low-pressure systems, offering cost and space efficiency. However, other valve types have distinct characteristics suited for different applications:

FAQs

What does a butterfly valve do?

A butterfly valve controls fluid flow in a pipeline by rotating a disc to open, close, or partially restrict the passage.

Can a butterfly valve be used for flow control?

Yes, butterfly valves can regulate flow, but they do not provide the same level of precision as globe valves, particularly at low flow rates.

When should you use a butterfly valve instead of a ball valve?

Choose a butterfly valve for applications involving slurry or viscous media and where controlled flow is needed. Use a ball valve when a tight shut-off and minimal leakage are required, particularly in high-pressure systems.

What is the difference between a butterfly valve and a gate valve?

A butterfly valve controls flow using a rotating disc, while a gate valve employs a sliding gate to open or close the flow path. Gate valves provide minimal flow resistance when fully open but take longer to operate than butterfly valves.
