Maintaining the flow of oil and gas in pipelines is a complex and critical task that relies on several essential components, with gas valves being among the most crucial. Without them, the oil and gas industry would be unable to effectively transport crude oil, refined gas, natural gas, and other materials to their destinations.
In downstream oil and gas operations, valves play a vital role in regulating fluid flow and pressure during refining, distribution, and storage. They help control flow direction, enable system isolation, and maintain pressure stability, ensuring smooth and safe operation. This article explores the common types of valves used in the downstream oil and gas sector and the key factors that influence their selection.
A gas valve is a crucial device used to regulate the flow of oil and gas by controlling the opening or closing of an aperture. This mechanism determines the amount of liquid or gas allowed through pipelines. Gas valves play a key role in managing fluid flow by starting and stopping the flow, adjusting volumes, controlling direction, regulating pressure, and relieving excess pressure.
Operating environments vary significantly—some are highly corrosive, while others endure constant high pressure. To accommodate these diverse conditions, numerous types of valves have been developed over the years, each with its own advantages and limitations. Understanding the different valve types and their applications is essential for ensuring optimal performance in the oil and gas industry.
Downstream valves operate under varying conditions, such as high pressures, corrosive environments, and extreme temperatures. Selecting the right valve type for each specific operation is crucial to ensuring both efficiency and longevity. The following sections explore common valves used in downstream operations, detailing their roles and benefits.
Ball valves are widely used in downstream operations due to their robustness and excellent sealing properties. These quarter-turn valves feature a spherical disc that regulates flow through the valve. When the valve is open, the hole in the ball aligns with the pipeline, allowing fluid to pass through. Turning the valve handle 90 degrees closes the valve, blocking the flow. Key advantages of ball valves include:
- Quick Operation: As quarter-turn valves, they offer rapid shutoff, making them ideal for emergency situations that require immediate fluid isolation.
- Tight Seal: Ball valves provide a strong seal with minimal leakage, ensuring efficient fluid control.
- Durability: Designed to withstand high pressures and temperatures, ball valves are well-suited for challenging operational environments.

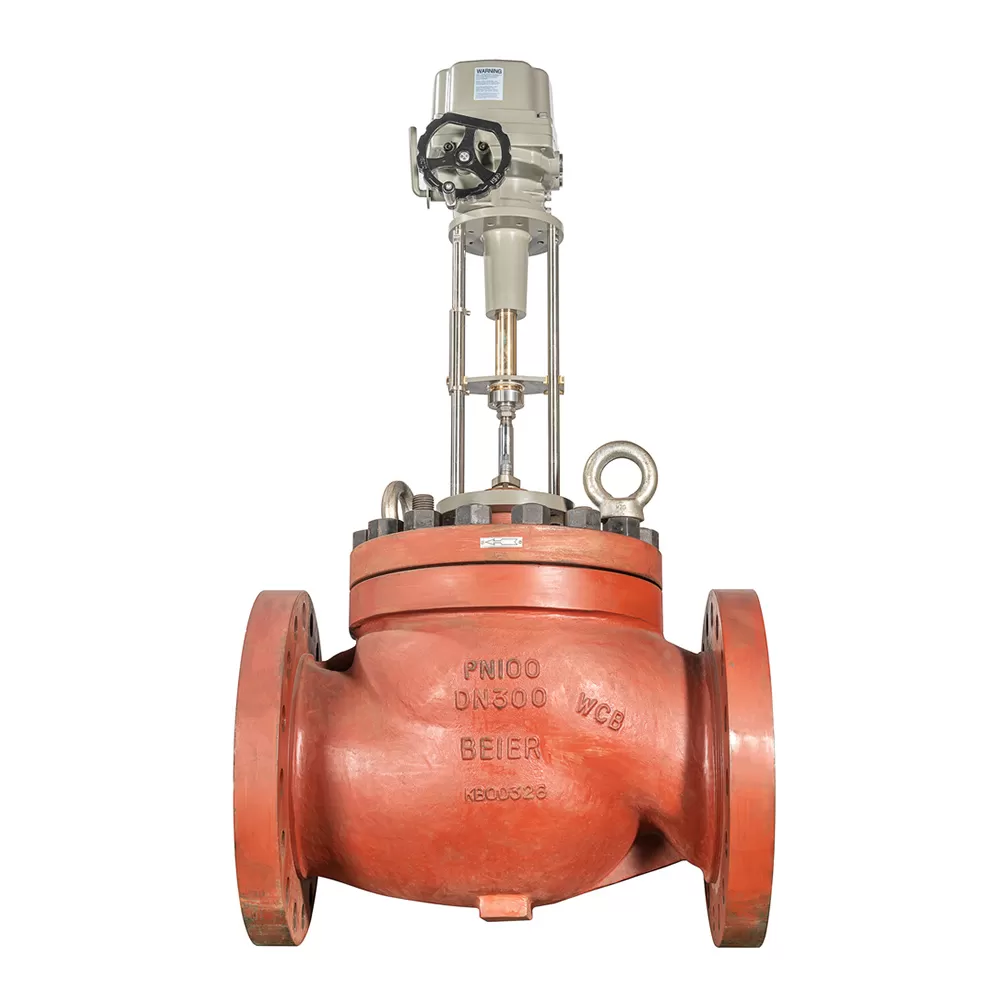

Globe valves are linear motion valves designed to start, stop, and regulate fluid flow. They feature a movable plug or disc element that opens or closes against a stationary ring seat. The design of globe valves makes them well-suited for the following applications in the oil and gas industry:
- Flow Regulation: Globe valves provide excellent throttling capabilities, offering precise control over flow rates. This is crucial for applications such as cooling water systems and fuel oil transportation.
- Good Shutoff Capability: These valves provide strong sealing when closed, effectively preventing leakage.
- High Pressure Handling: Globe valves are ideal for high-pressure applications, ensuring reliable, long-term performance.
Gate valves are the most common in the oil and gas industry, as they primarily allow or isolate flow. They operate by lifting a gate out of the fluid path to allow flow or lowering the gate to stop flow. Due to the lack of a direct relationship between gate position and flow rate, these valves are not suitable for metering applications. However, they offer several advantages, including:
- Minimal Pressure Drop: When open, gate valves provide full flow with minimal resistance, improving system efficiency with higher CV values.
- Bi-directional Flow: The design of gate valves allows for bi-directional flow, offering flexibility in both installation and operation.
- Robust Design: Gate valves are durable and can handle a wide range of fluids, including high-viscosity or corrosive substances.
Check valves, also known as non-return valves, are crucial for preventing backflow in piping systems. They automatically close when fluid reverses direction, ensuring the safety of both equipment and personnel. The benefits of incorporating check valves into a system include:
- Backflow Prevention: Check valves maintain unidirectional flow, protecting pumps and other equipment from damage caused by reverse flow.
- Automatic Operation: These valves require no manual operation, functioning solely based on pressure differentials, which enhances system reliability.
- Versatility: Check valves are available in various designs, such as swing check and lift check valves, making them adaptable to different applications and fluid types.
Butterfly valves are used for both flow regulation and isolation by utilizing a rotating disc to either block or allow fluid flow. The advantages of using butterfly valves include:
- Compact Design: Lightweight and space-efficient, butterfly valves are ideal for installations where space is limited.
- Fast Operation: These valves offer quick opening and closing, making them suitable for applications that require rapid flow control.
- Cost-effectiveness: Generally more affordable than other valve types, butterfly valves provide an excellent balance of performance and cost.
A plug valve features a plug-shaped disc with a horizontal passageway bored through it. When the valve is open, fluid flows through the hole. Turning the actuator 90 degrees from the open position blocks the flow through the pipeline. While plug valves are not recommended for throttling applications, they are ideal for handling unrefined oil products, such as those found in biogas production.
Slam-shut valves provide an additional layer of safety for equipment located upstream or downstream. Typically installed just before a regulator, these valves remain open until a significant pressure change is detected. When this occurs, the valve quickly shuts off the flow and must be manually reopened. Also known as relief and safety valves, slam-shut valves play a critical role in preventing accidents and ensuring safety within the oil and gas industry.
- Pressure Relief: Valves must manage system pressure to prevent hazardous overpressure situations. Pressure relief valves safely discharge excess stress, protecting equipment and personnel.
- Leak Prevention: Robust sealing mechanisms are vital to prevent leaks that could harm the environment and personnel. Valves meeting low-emission standards help reduce fugitive emissions.
- Material Compatibility: Valves should be made of materials that can withstand the chemical and thermal properties of the fluids they handle. Corrosion-resistant materials ensure longevity and reduce failures in harsh conditions.
- Pressure Drop Minimization: Valves should minimize pressure drop to improve efficiency and reduce energy consumption. Proper valve sizing ensures optimal flow characteristics.
- Flow Regulation: Valves must regulate flow effectively in precise applications. Choosing the right valve type, such as globe valves, allows for accurate flow control.
- Energy Optimization: Evaluate actuator power requirements. Choosing energy-efficient actuators enhances overall system efficiency.
- Lifespan and Durability: A valve's lifespan depends on its material and construction quality. High-quality materials are crucial for extending service intervals and reducing lifecycle costs.
- Maintenance Requirements: Choose valves designed for easy maintenance. Accessible components and simple inspection procedures reduce downtime and operational disruptions.
- Operational Conditions: Consider ambient temperature, pressure, and exposure to corrosive elements. Valves in harsh environments must be durable, wear-resistant, and capable of long-term performance.
- Isolation vs Control Needs: Determine whether the application requires isolation (start/stop) or flow regulation. Isolation valves like gate valves are ideal for on-off applications, while control valves like globe valves regulate flow.
- Fluid Properties: Assess fluid properties such as viscosity, corrosiveness, and temperature range. This helps in selecting suitable valve materials and types.
- Industry Standards: Ensure the valves comply with relevant industry standards and regulations that govern safety, performance, and environmental considerations.
At Kairuite, we have an array of industry-standard valves covering all aspects of the downstream oil and gas industry. We can also provide our customers with actuators, ancillary products, and valve modifications. Contact us today, and let us partner in delivering an efficient and cost-effective solution for your project.
